Binding Unfolded

Binding method

Comb binding: ringed plastic spine

Also called: plastic comb binding, GBC comb binding, Cerlox binding.

Published · Reviewed

Comb binding pushes a row of curved plastic tines, cast as one ringed spine bar, through rectangular holes punched along the edge of loose pages, so the whole spine can be pried open again to add or remove sheets.

  • Opens flatYes
  • Fold-backLimited
  • EditableYes

How comb binding opens

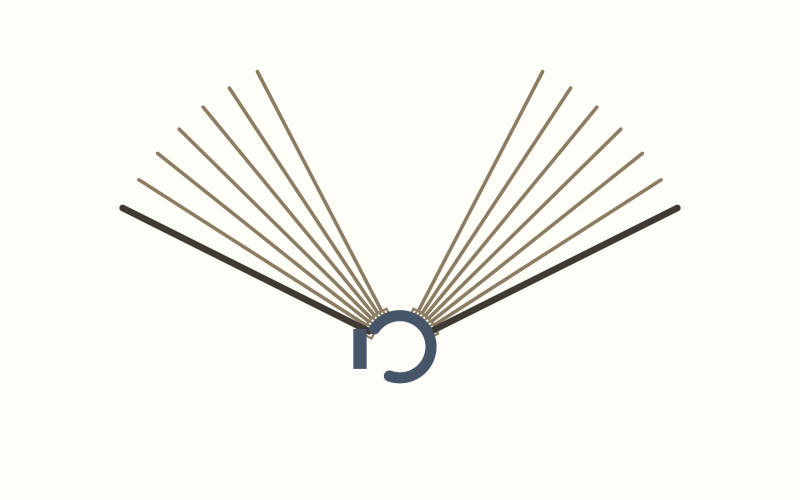

Comb bindingPages turning — leaves rotate around the comb, stepping up slightly against neighboring pages
Representative schematic — not to scale.
Pages turning — leaves rotate around the comb, stepping up slightly against neighboring pages

Drag to open the book. With the slider focused: ←/→ moves 1%, Shift+←/→ 5%, PgUp/PgDn jumps to the next state, Home/End to closed or fully open.

Closed state (shown without JavaScript)
Comb binding — closedClosed — pages stacked with the plastic comb spine engaged through the rectangular punched holes
Closed — Comb binding. Representative schematic — not to scale.

Opening states

  1. 1. Closed
  2. 2. Cover lifting
  3. 3. Pages turning
  4. 4. Practical open

Recognize it

How to recognize comb binding

Typically used for: Reports, manuals, training materials and presentations are common uses for comb binding, printfinish.com's own listing notes, and it adds that businesses lean on it for employee handbooks and procedural manuals while schools use it for course packets; project proposals get a mention too, prized there for a 'polished and organized appearance.'

  • A solid molded spine of curved plastic tines forms one continuous ring through each hole, not a run of separate hardware.
  • Holes are punched rectangular, sized to fit the comb's curved tines rather than a round wire or coil.
  • Open the book and facing pages step slightly out of line at the fore-edge, one closed loop's partial turn at a time, instead of swinging freely around the spine.
  • Next to spiral or Wire-O, look for the closed ring: comb's tines form one molded loop per hole that only partly rotates, while a single coil or paired wire loops spin all the way around.

Terms used here: comb, cover, creep, fold, fold-back, fore edge, head and tail, opens flat, punched holes, sheet, spine

Mechanics

What moves when it opens

Pages turn by rotating around the ringed spine, but because each tine is a closed loop rather than a single wire, the stack can't spin all the way around it.

Instead, pages step up slightly against their neighbors as they turn, and the book settles into a flat-lying rest rather than folding fully back on itself.

The same tines that hold the pages closed can be splayed open by hand, which is what makes this binding easy to re-edit after the fact.

Anatomy

Comb binding anatomy: pages, cover, hardware

  1. Pages: The individual leaves, or folded signatures, that make up the text block.
  2. Cover: The outer wrap or boards enclosing the text block.
  3. Hardware: The metal or plastic fastening element running through the punched or drilled holes.

At a glance

Comb binding at a glance

Sheet organizationLoose leaves
Joining mechanismcurved plastic tines extending from a round-ringed spine bar, threaded through rectangular punched holes along one edge
SpineExposed
Opens flat?Yes. The block lies flat, though pages step up slightly against each other as they turn.
Fold-back?Limited
Editable after binding?Yes. The comb spine pries open by hand so pages can be added or removed.

See how all eleven compare on opening flat

Compare

Comb binding vs. spiral binding and Wire-O binding

  • Often confused with

    Spiral binding

    From across a table, exposed hardware through punched holes looks about the same on both, but spiral's single coil lets pages spin freely while comb's closed-loop tines only allow a partial turn, stepping pages up against each other.

  • Often confused with

    Wire-O binding

    The two share a family resemblance (hardware visible along the edge, holes punched through every sheet), but the paired wire loops of Wire-O binding rotate fully flat while comb's solid ringed tines don't.

  • By contrast

    Smyth-sewn binding

    Smyth-sewn hides its joining thread inside a covered spine and is meant to stay closed permanently, the opposite of comb's exposed, reopenable ring.

Compare comb binding with spiral bindingor pick any two bindings

Read the comparison: Spiral vs. comb vs. Wire-O binding

Variations

Variations and limitations

Comb diameter and tine count scale with the stack's thickness, up to a practical capacity limit; this shows one representative letter-size comb.

The same mechanism goes by several trade names: printfinishing.com lists Cerlox (sometimes Surelox or Surlox) and 19-ring comb as commercial names for standard plastic comb binding.

Representative ringed comb geometry shown, not to scale.

Walsworth's guide puts a number on that capacity limit: comb diameters run 'as large as three inches.'

A comb spine can also be reused once removed from a book, and mybinding notes the spine itself can be imprinted with titles, company names or logos.

Printwiki's overview also files this mechanism under the alias 'plastic comb binding,' the same hardware by another name.

Comb spines are typically made of PVC plastic, printfinish.com notes, chosen for the durability and flexibility that let the comb open and close for binding.

Limits of this schematic

  • Representative ringed letter-size comb shown; ring count and comb diameter vary with page thickness, up to a practical capacity limit set by the comb's diameter.
  • Pages step up slightly when turned and cannot rotate fully around the spine the way spiral or Wire-O can, which is why fold-back is only partial.

FAQ

Frequently asked questions

Can you add or remove pages after comb binding?

Yes, that's the point of the mechanism. The molded tines pry open by hand, so pages slide on or off without any tool beyond your fingers, and the comb closes back around the stack once you're done, with no new hardware needed. The same spine can even be reused on a different stack afterward, since opening and closing it doesn't damage the plastic tines.

Why can't a comb-bound book fold all the way back like a spiral notebook?

Walsworth's guide draws the line at rotation: it credits only spiral and Wire-O bindings with being able to double over on themselves, adding that this gives 'full visibility of content and hands-free reading' that a comb's partial turn doesn't reach.

Does comb binding lay flat?

Yes, though not all the way around. Comb binding's tines form one molded ring per hole, so the block lies flat once it's open, but each page steps up slightly against its neighbor instead of spinning fully around the spine the way a single coil or a paired wire loop can. That partial rotation is the trade-off for a spine you can pry open by hand later. See which bindings open flat.

References

Key references

  • walsworth.com: Walsworth splits flat from fold-back; this site follows that distinction
  • printwiki.org: A plastic strip of curved prongs inserted through punched holes
  • cool.culturalheritage.org: A plastic strip with curved prongs inserted through punched holes
  • mybinding.com: Rings spread open to add sheets; pages step up rather than turn 360 degrees
  • printfinishing.com: Also known as Cerlox, sometimes Surelox, or 19-ring comb binding

Every claim on this page traces to a fetched source, recorded with its URL and access date in the project's research files; Methodology explains how sources are checked. Last reviewed 2026-09-08.
